LT1185CQ#PBF footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

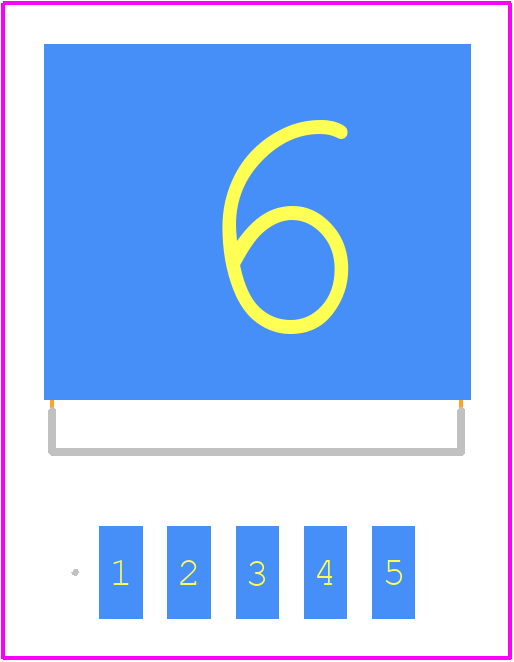

LT1185CQ#PBF - Analog Devices PCB footprint - Other - Other - Q Package 5-Lead Plastic DD Pak_2022

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT1185CQ#PBF
Part Number LT1185CQ#PBF
Manufacturer Analog Devices
Pin Count 6
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - Q Package 5-Lead Plastic DD Pak_2022
Released Date Dec 9, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LT1185CQ#PBF Details

Manufacturer Part Number:
LT1185CQ#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LEAD FREE, PLASTIC, D2PAK-5
Pin Count:
5
Manufacturer Package Code:
05-08-1461
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9

LT1185CQ#PBF Frequently Asked Questions (FAQs)

The maximum input voltage that can be applied to the LT1185CQ is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
To ensure stability, it's essential to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the output capacitor should be placed as close to the output pin as possible.
The maximum output current that the LT1185CQ can deliver is 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
To reduce noise and ripple, it's recommended to use a low-ESR output capacitor, and to add a 10nF to 100nF ceramic capacitor in parallel with the output capacitor. Additionally, keeping the input and output capacitors close to the device can help reduce noise and ripple.
The thermal shutdown temperature of the LT1185CQ is 150°C. If the junction temperature exceeds this value, the device will shut down to prevent damage.

Trust Checks

Community Provided

System Verified

Community Approved

LT1185CQ#PBF Overview

Use the download button to access the LT1185CQ#PBF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LT118, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
