LT1185IQ#PBF - Analog Devices

Description: Linear Technology LT1185IQ#PBF, LDO Voltage Regulator, Adjustable 3A, 2.5 → 25 V ±1%, 5-Pin D2PAK

Download LT1185IQ#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LT1185IQ#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

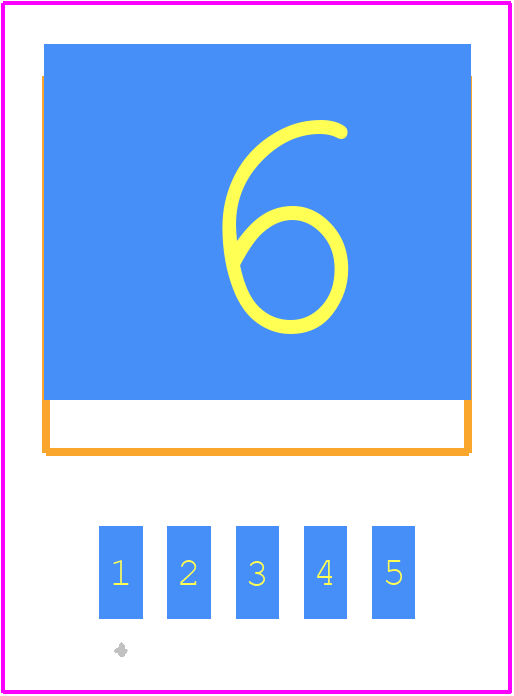

LT1185IQ#PBF - Analog Devices PCB footprint - Other - Other - LT1185IQ#PBF-2
click to zoom

LT1185IQ#PBF Details

  • Manufacturer Part Number:

    LT1185IQ#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, D2PAK-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    05-08-1461

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

LT1185IQ#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT1185IQ#PBF is 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 12V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to use the recommended output capacitor value and type, and to follow the layout guidelines provided in the datasheet to minimize noise and oscillations.
  • The maximum output current that the LT1185IQ#PBF can deliver is 3A, but it's recommended to operate within the specified output current range of 0A to 2.5A for optimal performance and to prevent overheating.
  • To protect the LT1185IQ#PBF from overheating, ensure proper heat sinking, use a thermal pad or heat sink, and operate within the specified temperature range of -40°C to 125°C. Also, avoid exceeding the maximum junction temperature of 150°C.
  • The EN (Enable) pin on the LT1185IQ#PBF is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1185IQ#PBF Overview

Use the download button to access the LT1185IQ#PBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LT118, or try a keyword search, such as Linear Regulator ICs
