LT1210CS#PBF footprint, schematic symbol and 3D model by Analog Devices

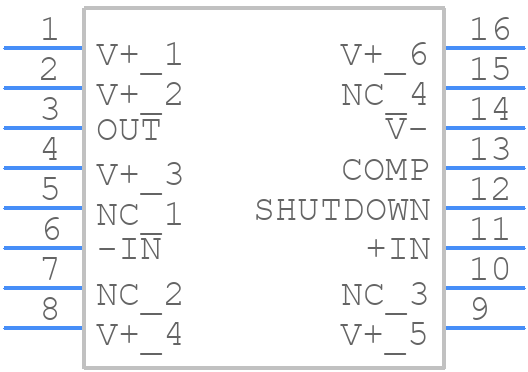

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT1210CS#PBF
Part Number LT1210CS#PBF
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 16-LEAD_S(SOIC)
Released Date Nov 11, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LT1210CS#PBF Details

Manufacturer Part Number:
LT1210CS#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-16
Pin Count:
16
Manufacturer Package Code:
05-08-1610 (S16)
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
CURRENT-FEEDBACK
Common-mode Reject Ratio-Min:
50 dB
Common-mode Reject Ratio-Nom:
60 dB
Frequency Compensation:
NO
Input Offset Voltage-Max:
20000 µV
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.906 mm
Low-Bias:
NO
Low-Offset:
NO
Micropower:
NO
Moisture Sensitivity Level:
1
Neg Supply Voltage Limit-Max:
-18 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.752 mm
Slew Rate-Min:
400 V/us
Slew Rate-Nom:
900 V/us
Supply Current-Max:
65 mA
Supply Voltage Limit-Max:
18 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
35000
Voltage Gain-Min:
562.34
Wideband:
YES
Width:
3.899 mm

LT1210CS#PBF Frequently Asked Questions (FAQs)

A good PCB layout for the LT1210CS involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability in high-gain configurations, it's essential to follow proper PCB layout guidelines, use a low-ESR output capacitor, and add a small capacitor (e.g., 10pF) between the output and the inverting input. Additionally, consider adding a small resistor (e.g., 10Ω) in series with the output to improve stability.
The maximum power dissipation of the LT1210CS is dependent on the package type and the ambient temperature. For the CS package, the maximum power dissipation is approximately 1.4W. To calculate the power dissipation, use the formula: Pd = (VIN - VOUT) x IOUT + VIN x IGND, where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IGND is the ground current.
Yes, the LT1210CS can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal. Additionally, consider the output impedance of the LT1210CS, which is approximately 10Ω, and ensure that it's suitable for the load requirements.
To protect the LT1210CS from overvoltage and overcurrent conditions, consider adding overvoltage protection (OVP) circuits, such as a voltage clamp or a zener diode, and overcurrent protection (OCP) circuits, such as a current-sensing resistor and a comparator. Additionally, ensure that the input and output capacitors are rated for the maximum expected voltage and current.

Trust Checks

Community Provided

System Verified

Community Approved

LT1210CS#PBF Overview

Use the download button to access the LT1210CS#PBF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LT121, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
