LT1223CS8#PBF - Analog Devices

Description: Linear Technology LT1223CS8#PBF Current Feedback Op Amp, 100MHz, 8-Pin SOIC

Download LT1223CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

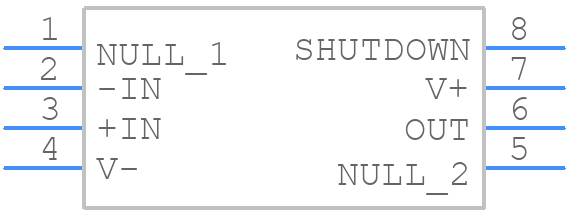

LT1223CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1223CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LT1223CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LT1223CS8#PBF Details

  • Manufacturer Part Number:

    LT1223CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    3 µA

  • Bias Current-Max (IIB) @25C:

    3 µA

  • Common-mode Reject Ratio-Min:

    56 dB

  • Common-mode Reject Ratio-Nom:

    63 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Min:

    800 V/us

  • Slew Rate-Nom:

    1300 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    100000

  • Voltage Gain-Min:

    3162.27766

  • Wideband:

    YES

  • Width:

    3.899 mm

LT1223CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1223CS8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to minimize the loop area of the input and output traces to reduce electromagnetic interference (EMI).
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as specified in the datasheet. Additionally, the output capacitor should be chosen to ensure a minimum ESR of 0.1 ohms, and the input capacitor should be chosen to ensure a minimum ESR of 1 ohm. It's also recommended to use a low-ESR output capacitor and to minimize the output capacitor's equivalent series inductance (ESL).
  • The LT1223CS8 has an operating temperature range of -40°C to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. The device's thermal shutdown feature will activate if the junction temperature exceeds 150°C.
  • Yes, the LT1223CS8 is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process, and it's available in a hermetically sealed package. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the LT1223CS8, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance, and consider contacting Analog Devices' technical support team for further assistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1223CS8#PBF Overview

Use the download button to access the LT1223CS8#PBF schematic symbol, PCB footprint, and 3D model.
