LT1248CS#TRPBF - Analog Devices

Description: Power Factor Correction - PFC Pwr Factor Correction Controller

Download LT1248CS#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

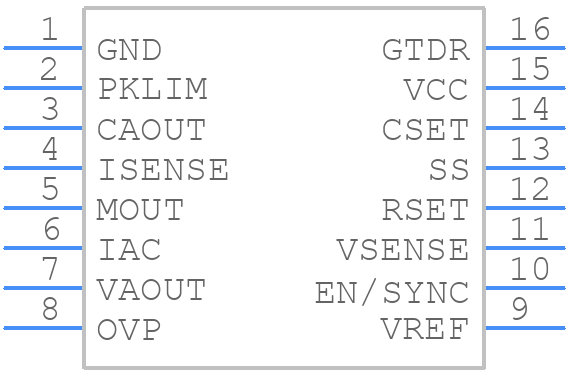

LT1248CS#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1248CS#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)_2022
click to zoom
3D Models
LT1248CS#TRPBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)_2022
click to zoom

LT1248CS#TRPBF Details

  • Manufacturer Part Number:

    LT1248CS#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER
