LT1316CS8#PBF - Analog Devices

Description: LT1316CS8#PBF, Boost Converter, Step Up Adjustable, 1.23 → 10 V, 8-Pin SOIC

Download LT1316CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

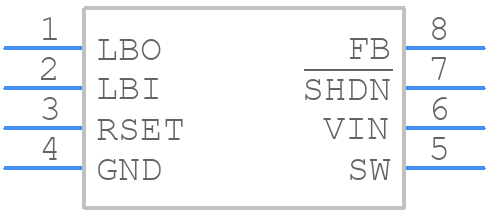

LT1316CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1316CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LT1316CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LT1316CS8#PBF Details

  • Manufacturer Part Number:

    LT1316CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    CONSTANT OFF TIME

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    1.65 V

  • Input Voltage-Nom:

    2 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.75 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LT1316CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1316CS8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR output capacitor and to minimize the loop area of the input and output traces to reduce EMI.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be chosen to provide adequate filtering. It's also important to ensure that the device is operated within its recommended operating conditions.
  • The LT1316CS8 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature does not exceed 150°C to prevent damage or malfunction.
  • The LT1316CS8 is a commercial-grade device, but Analog Devices offers a high-reliability version, the LT1316HS8, which is designed for use in high-reliability and aerospace applications. The high-reliability version is built with more stringent testing and screening requirements to ensure higher reliability and performance.
  • To troubleshoot issues with the LT1316CS8, start by verifying that the device is properly powered and that the input and output voltages are within the recommended ranges. Check for proper PCB layout and component selection, and ensure that the device is operated within its recommended operating conditions. Use oscilloscopes and other diagnostic tools to identify any issues with the input or output signals.
