LT1317CMS8#PBF - Analog Devices

Description: Conv DC-DC 1.5V to 12V Step Up Single-Out 1.24V to 30V 0.2A Micropower 8-Pin MSOP Tube

Download LT1317CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

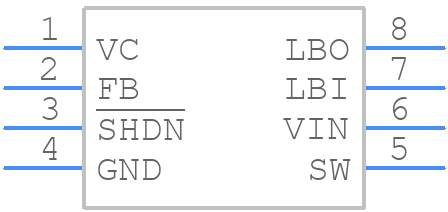

Symbol
LT1317CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1317CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP -----
click to zoom
3D Models
LT1317CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP -----
click to zoom

LT1317CMS8#PBF Details

  • Manufacturer Part Number:

    LT1317CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    2 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.35 A

  • Output Voltage-Nom:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    720 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT1317CMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1317CMS8 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within its specified temperature range. Additionally, adding a small capacitor (e.g., 10nF) between the Vc pin and ground can help prevent oscillations.
  • The LT1317CMS8 can deliver up to 1.5A of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
  • To protect the LT1317CMS8 from overvoltage and undervoltage conditions, consider adding overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits. These can be implemented using external components such as zener diodes, resistors, and voltage comparators.
  • The recommended input capacitor value for the LT1317CMS8 is typically in the range of 1uF to 10uF, depending on the input voltage and output current requirements. A larger input capacitor can help reduce input ripple and improve overall performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1317CMS8#PBF Overview

Use the download button to access the LT1317CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT131, or try a keyword search, such as Switching Regulator or Controllers
