Part Image

LT1351CS8#PBF - Analog Devices

Description: Op Amp Single High Speed Amplifier ±18V/36V Automotive 8-Pin SOIC N Tube

Download LT1351CS8#PBF Model

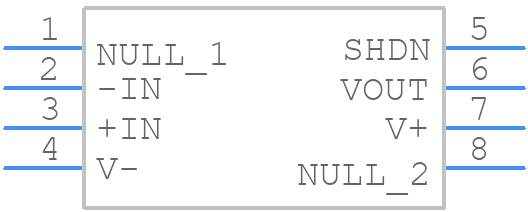

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1351CS8#PBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SOIC 8 LEAD
click to zoom
3D Models
LT1351CS8#PBF - Analog Devices  - 3D model - SOT23 (8-Pin) - SOIC 8 LEAD
click to zoom

LT1351CS8#PBF Details

  • Manufacturer Part Number:

    LT1351CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.075 µA

  • Bias Current-Max (IIB) @25C:

    0.05 µA

  • Common-mode Reject Ratio-Min:

    77 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    800 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    21 V/us

  • Slew Rate-Nom:

    50 V/us

  • Supply Current-Max:

    0.355 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2700

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

LT1351CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1351CS8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and ground to improve stability.
  • The maximum output current of the LT1351CS8 is 5A. However, it's recommended to derate the output current based on the ambient temperature and the desired reliability of the system.
  • The LT1351CS8 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage based on the ambient temperature and to ensure proper heat sinking.
  • To protect the LT1351CS8 from input voltage transients, consider adding a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure that the input capacitor is properly sized and that the input voltage is within the recommended range.
