LT1375CS8#PBF - Analog Devices

Description: Linear Technology, LT1375CS8#PBF Switching Regulator 1.5A, 8-Pin SOIC

Download LT1375CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

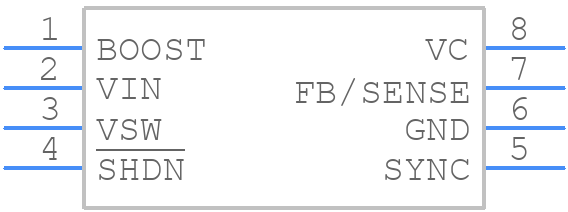

LT1375CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1375CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC SO
click to zoom
3D Models
LT1375CS8#PBF - Analog Devices - 3D model - Small Outline Packages - 8-LEAD PLASTIC SO
click to zoom

LT1375CS8#PBF Details

  • Manufacturer Part Number:

    LT1375CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    2.48 V

  • Output Voltage-Min:

    2.36 V

  • Output Voltage-Nom:

    2.42 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    1.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    570 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT1375CS8#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT1375CS8 is 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 12V for optimal performance.
  • To ensure stability in the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum output current that the LT1375CS8 can deliver is 5A, but this is dependent on the input voltage, output voltage, and ambient temperature. It's essential to consult the datasheet and perform thermal calculations to ensure the device operates within its safe operating area.
  • To protect the LT1375CS8 from overcurrent and overheating, it's recommended to implement overcurrent protection (OCP) and overtemperature protection (OTP) mechanisms. This can be achieved using external components, such as current sense resistors and thermal sensors, or by using a dedicated IC with built-in OCP and OTP features.
  • The LT1375CS8 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to consult the datasheet and perform thermal calculations to ensure the device operates within its safe operating area. Additionally, consider using thermal management techniques, such as heat sinking and airflow, to maintain a safe operating temperature.
