LT1376CN8-5#PBF - Analog Devices

Description: LT1376CN8-5#PBF, Switching Regulator, Buck Controller, 1.5A, 5 V, 560 kHz, 8-Pin PDIP N

Download LT1376CN8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

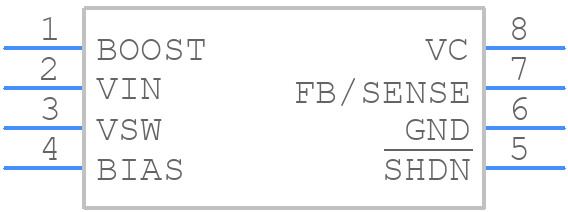

Symbol
LT1376CN8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1376CN8-5#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LT1376CN8-5#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom

LT1376CN8-5#PBF Details

  • Manufacturer Part Number:

    LT1376CN8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max (Isup):

    1.4 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    570 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.477 mm

LT1376CN8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1376CN8-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer board with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR output capacitor, and keep the input and output capacitors close to the device. Also, avoid using long input traces and ensure that the device is properly decoupled.
  • The maximum ambient temperature range for the LT1376CN8-5 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to derate the output current and voltage accordingly.
  • Yes, the LT1376CN8-5 is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is suitable for use in harsh environments. However, it's recommended to consult with Analog Devices' application engineers to ensure that the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT1376CN8-5, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the compensation network is correct. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1376CN8-5#PBF Overview

Use the download button to access the LT1376CN8-5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT137, or try a keyword search, such as Switching Regulator or Controllers
