LT1394CMS8#PBF - Analog Devices

Description: Analog Comparators 7ns Low Power Comparator

Download LT1394CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

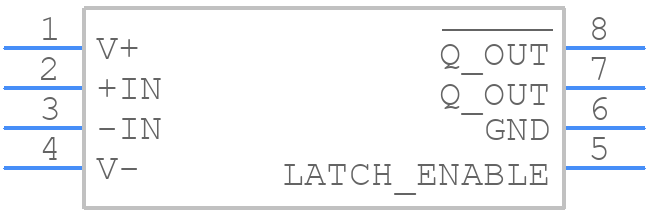

LT1394CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1394CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8_2020
click to zoom
3D Models
LT1394CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8_2020
click to zoom

LT1394CMS8#PBF Details

  • Manufacturer Part Number:

    LT1394CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    7 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT1394CMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1394 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. The VEE pin should be connected to a stable negative voltage source or ground, depending on the application. The input common-mode voltage should be within the recommended range.
  • The maximum allowable power dissipation for the LT1394 is 1.4W. This can be calculated using the formula: Pd = (VCC x ICC) + (VEE x IEE), where ICC and IEE are the quiescent currents. Ensure that the device is properly heat-sinked to prevent overheating.
  • Yes, the LT1394 can be used as a single-ended amplifier. However, this will reduce the common-mode rejection ratio (CMRR) and the power supply rejection ratio (PSRR). A single-ended configuration may also increase the noise and distortion. It is recommended to use the device in a differential configuration for optimal performance.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any parasitic inductance or capacitance that may be causing the issue. Ensure that the input and output traces are properly terminated, and that the device is properly biased. Also, check for any noise or interference on the power supply lines.
