LT1493CS#PBF - Analog Devices

Description: 5MHz, 3V/µs, Low Power Single Supply, Dual and Quad Precision Op Amps, SO-16

Download LT1493CS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

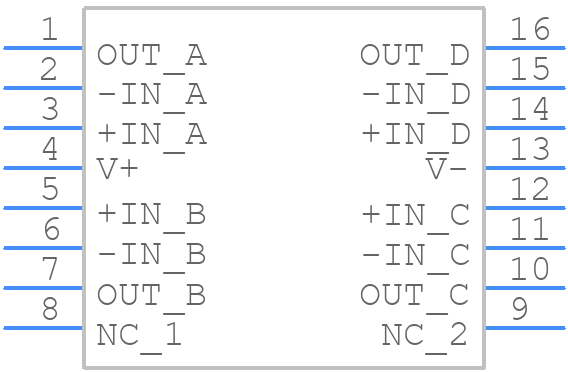

Symbol
LT1493CS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1493CS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO 16-ren1
click to zoom
3D Models
LT1493CS#PBF - Analog Devices - 3D model - Small Outline Packages - SO 16-ren1
click to zoom

LT1493CS#PBF Details

  • Manufacturer Part Number:

    LT1493CS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.12 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    84 dB

  • Common-mode Reject Ratio-Nom:

    101 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    550 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    3.72 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5000

  • Voltage Gain-Min:

    1200000

  • Wideband:

    NO

  • Width:

    3.9 mm

LT1493CS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1493CS#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input and output capacitors close to the device.
  • To ensure stability, it's essential to follow the recommended compensation network and output filter configurations. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
  • The maximum power dissipation of the LT1493CS#PBF is 1.4W. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and operate the device within its recommended operating conditions.
  • The LT1493CS#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to derate the device's power dissipation and ensure good thermal management to prevent overheating.
  • To troubleshoot issues with the LT1493CS#PBF, start by verifying the PCB layout and ensuring that the device is operated within its recommended operating conditions. Check the input and output capacitors, compensation network, and output filter for correctness. Use an oscilloscope to observe the device's behavior and identify any signs of oscillation or instability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1493CS#PBF Overview

Use the download button to access the LT1493CS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT149, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
