LT1506CR#PBF - Analog Devices

Description: Switching Voltage Regulators 4.5A 500kHz Stepdown Sw Reg

Download LT1506CR#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

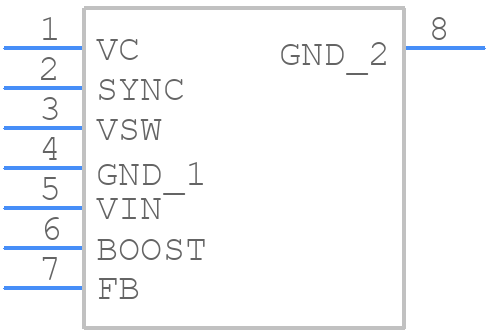

LT1506CR#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

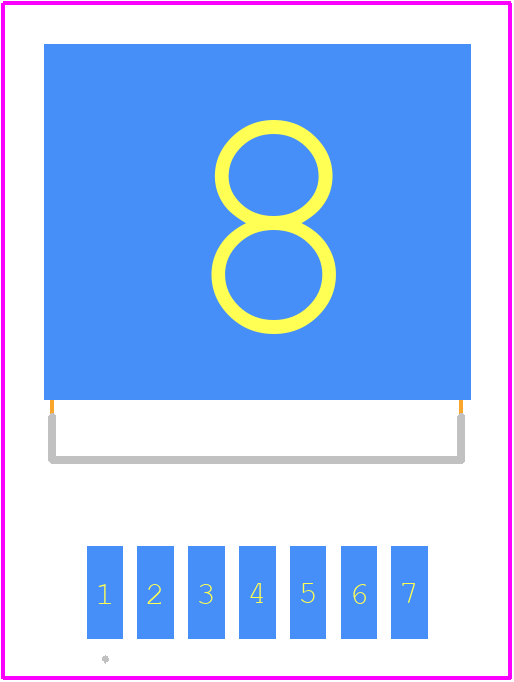

LT1506CR#PBF - Analog Devices PCB footprint - Other - Other - R Package 7-Lead Plastic DD Pak (Reference LTC DWG # 05-08-1462 Rev G)
click to zoom

LT1506CR#PBF Details

  • Manufacturer Part Number:

    LT1506CR#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    D2PAK-7

  • Pin Count:

    7

  • Manufacturer Package Code:

    05-08-1462

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PHASE-SHIFT CONTROL

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10.2235 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    4.5 A

  • Output Voltage-Nom:

    2.42 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SMSIP7H,.55,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    5.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    560 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8.89 mm

LT1506CR#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1506CR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network configuration, use a minimum output capacitance of 10uF, and keep the input and output capacitors close to the device. Also, avoid using long input and output traces, and minimize the area of the power and ground planes.
  • The maximum ambient temperature range for the LT1506CR is -40°C to 125°C. However, the device's performance and reliability may degrade at temperatures above 85°C, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
  • Yes, the LT1506CR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
  • The power dissipation of the LT1506CR can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Make sure to consider the thermal resistance of the package and the PCB when calculating the power dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1506CR#PBF Overview

Use the download button to access the LT1506CR#PBF schematic symbol and PCB footprint.
