LT1506CS8-3.3#PBF - Analog Devices

Description: Linear Technology, LT1506CS8-3.3#PBF Step-Down Switching Regulator 4.5A Adj./Fixed, Maximum of 3.3 V, 8-Pin SOIC

Download LT1506CS8-3.3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

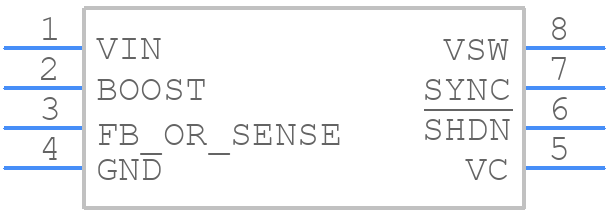

Symbol
LT1506CS8-3.3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1506CS8-3.3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LT1506CS8-3.3#PBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LT1506CS8-3.3#PBF Details

  • Manufacturer Part Number:

    LT1506CS8-3.3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PHASE-SHIFT CONTROL

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    4.5 A

  • Output Voltage-Max:

    3.37 V

  • Output Voltage-Min:

    3.23 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    5.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    560 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT1506CS8-3.3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1506CS8-3.3 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the LT1506CS8-3.3 output voltage, it is essential to use the recommended output capacitor value and type, and to place it close to the device. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
  • The maximum ambient temperature range for the LT1506CS8-3.3 is -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it is recommended to operate it at a temperature range of -40°C to 85°C for optimal performance.
  • Yes, the LT1506CS8-3.3 is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing and qualification to ensure its performance and reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the overall system.
  • To troubleshoot issues with the LT1506CS8-3.3, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions, and that the PCB layout is correct. Use an oscilloscope to check for noise and oscillations, and consult the datasheet and application notes for guidance.
