LT1507CS8#PBF - Analog Devices

Description: LT1507CS8#PBF, Switching Regulator, Buck Controller, 1.5A, Adjustable, 570 kHz, 8-Pin, SOIC

Download LT1507CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

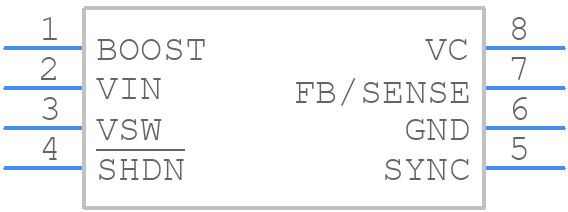

LT1507CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1507CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8(SOIC)
click to zoom
3D Models
LT1507CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8(SOIC)
click to zoom

LT1507CS8#PBF Details

  • Manufacturer Part Number:

    LT1507CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4.3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Nom:

    2.42 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    570 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LT1507CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1507CS8 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, keep the input and output capacitors close to the device, and avoid using long input traces. Additionally, ensure that the output capacitor has a low ESR and the input voltage is within the recommended range.
  • The maximum ambient temperature range for the LT1507CS8 is -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper heat sinking and thermal management.
  • Yes, the LT1507CS8 is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device meets the specific application requirements.
  • To troubleshoot common issues with the LT1507CS8, start by checking the input voltage, output load, and PCB layout. Ensure that the device is properly soldered and that there are no signs of physical damage. Use an oscilloscope to check the output voltage and current, and verify that the compensation network is correctly implemented. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1507CS8#PBF Overview

Use the download button to access the LT1507CS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT150, or try a keyword search, such as Switching Regulator or Controllers
