LT1521IS8-5#PBF - Analog Devices

Description: Linear Technology LT1521IS8-5#PBF, LDO Regulator, 300mA, 5 V, 6 → 20 Vin 8-Pin, SOIC

Download LT1521IS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

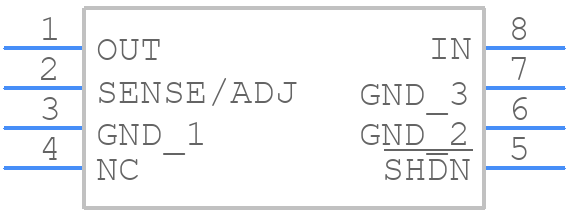

LT1521IS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1521IS8-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT1521IS8-5#PBF
click to zoom
3D Models
LT1521IS8-5#PBF - Analog Devices - 3D model - Small Outline Packages - LT1521IS8-5#PBF
click to zoom

LT1521IS8-5#PBF Details

  • Manufacturer Part Number:

    LT1521IS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.75 V

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage Absolute-Max:

    20 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    5.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.02%

  • Load Regulation-Max:

    0.075%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    5.15 V

  • Output Voltage1-Min:

    4.85 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    3.9 mm

LT1521IS8-5#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT1521IS8-5#PBF is 15V, but it's recommended to operate within the specified input voltage range of 4.5V to 12V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum output current that the LT1521IS8-5#PBF can deliver is 5A, but it's recommended to operate within the specified output current range of 0.1A to 3A for optimal performance and to prevent overheating.
  • To protect the LT1521IS8-5#PBF from overheating, ensure good airflow around the device, use a suitable heat sink if necessary, and operate within the specified temperature range of -40°C to 125°C. Additionally, monitor the device's junction temperature and reduce the output current if necessary.
  • Yes, the LT1521IS8-5#PBF is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality manufacturing process and rigorous testing. However, it's essential to follow the recommended design and layout guidelines to ensure optimal performance and reliability.
