LT1529CQ#TRPBF - Analog Devices

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 3A DDPAK-5 , 3.75V , 0°C ~ 125°C

Download LT1529CQ#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

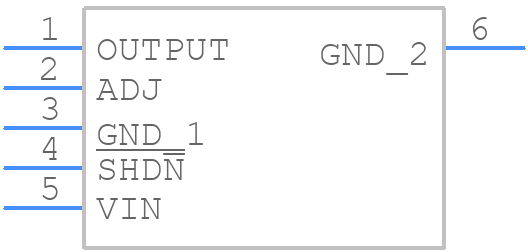

LT1529CQ#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

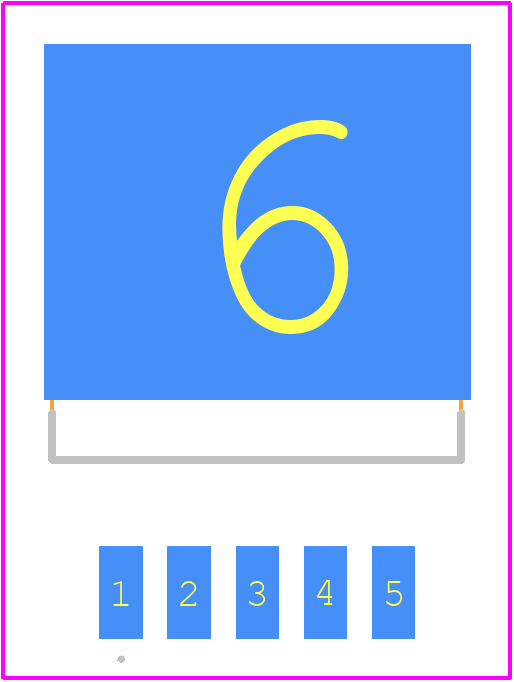

LT1529CQ#TRPBF - Analog Devices PCB footprint - Other - Other - Q Package 5-Lead Plastic DD Pak_2026
click to zoom

LT1529CQ#TRPBF Details

  • Manufacturer Part Number:

    LT1529CQ#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DDPAK-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    05-08-1461

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.95 V

  • Dropout Voltage1-Nom:

    0.6 V

  • Input-Output Voltage Differential-Max:

    11.25 V

  • Input-Output Voltage Differential-Min:

    1.05 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.2235 mm

  • Line Regulation-Max (%/V):

    0.026

  • Load Regulation-Max(%):

    0.82%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    14 V

  • Output Voltage1-Min:

    3.75 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP5H,.6,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.877 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8.89 mm
