LT1567CMS8 - Analog Devices

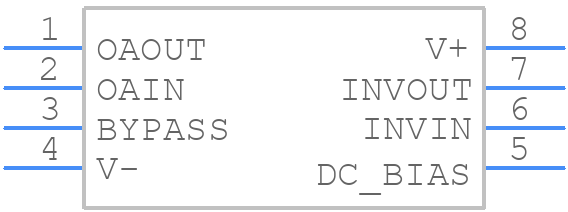

LT1567CMS8 Details

• Manufacturer Part Number:

  LT1567CMS8

• Part Life Cycle Code:

  Active

• Package Description:

  PLASTIC, MSOP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Active Filter Type:

  CONTINUOUS TIME FILTER

• Additional Feature:

  2ND OR 3RD ORDER CHEBYSHEV OR BUTTERWORTH LOWPASS OR 2ND ORDER BANDPASS FILTER CAN BE DESIGNED

• Center or Cutoff Freq Rng-Max:

  5000 kHz

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Max (Vsup):

  -6 V

• Neg Supply Voltage-Min (Vsup):

  -1.35 V

• Neg Supply Voltage-Nom (Vsup):

  -2.5 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Poles and Zeros:

  3 AND 0

• Qualification Status:

  Not Qualified

• Response:

  BANDPASS/LOWPASS

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  1.35 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Transfer Characteristics:

  BUTTERWORTH/CHEBYSHEV

• Width:

  3 mm
