LT1619ES8#PBF - Analog Devices

Description: Linear Technology LT1619ES8#PBF, PWM Current Mode Controller, 1.5 A, 360 kHz, 1.9 → 18 V, 8-Pin SOIC

Download LT1619ES8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

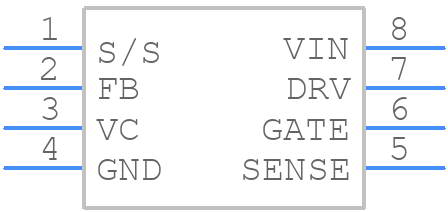

LT1619ES8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1619ES8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LT1619ES8#PBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LT1619ES8#PBF Details

  • Manufacturer Part Number:

    LT1619ES8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-16

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    1.9 V

  • Input Voltage-Nom:

    2.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    360 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LT1619ES8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1619ES8 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the feedback resistors are properly selected. Also, avoid using long feedback traces and minimize the distance between the IC and the output capacitor.
  • The maximum ambient temperature range for the LT1619ES8 is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider thermal management in your design.
  • Yes, the LT1619ES8 is suitable for high-reliability applications. It's manufactured using a proprietary BiCMOS process, which ensures high reliability and low defect rates. Additionally, the device is qualified to automotive and industrial standards.
  • To troubleshoot issues with the LT1619ES8, start by checking the input voltage, output voltage, and feedback resistors. Ensure that the device is properly powered, and the output capacitor is properly sized. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1619ES8#PBF Overview

Use the download button to access the LT1619ES8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT161, or try a keyword search, such as Switching Regulator or Controllers
