LT1676CN8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1676CN8#PBF - IC, SWITCHING REG ADJ, 1676, DIP8

Download LT1676CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

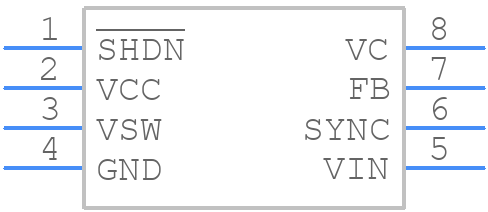

Symbol
LT1676CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1676CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LT1676CN8#PBF
click to zoom
3D Models
LT1676CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - LT1676CN8#PBF
click to zoom

LT1676CN8#PBF Details

  • Manufacturer Part Number:

    LT1676CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    7.4 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max (Isup):

    5 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    115 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LT1676CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1676CN8 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR output capacitor, and keep the input and output impedance low. Also, avoid using long input traces and ensure that the device is properly bypassed.
  • The maximum power dissipation of the LT1676CN8 is dependent on the package and the ambient temperature. For the 8-pin PDIP package, the maximum power dissipation is 1.4W at 25°C. However, this can be increased by using a heat sink or by reducing the ambient temperature.
  • While the LT1676CN8 can be used as an audio amplifier, it is not the most suitable device for this application. The device has a bandwidth of 10MHz, which is much higher than what is required for audio applications. Additionally, the device has a high noise floor, which may not be suitable for high-fidelity audio applications.
  • To protect the LT1676CN8 from overvoltage and overcurrent conditions, use a voltage regulator to regulate the input voltage, and add overcurrent protection devices such as fuses or current-limiting resistors. Additionally, use a TVS diode to protect the device from voltage transients.
