LT1712IGN#PBF - Analog Devices

Description: Comparator Dual R-R I/O ±3.5V/7V 16-Pin SSOP N Tube

Download LT1712IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

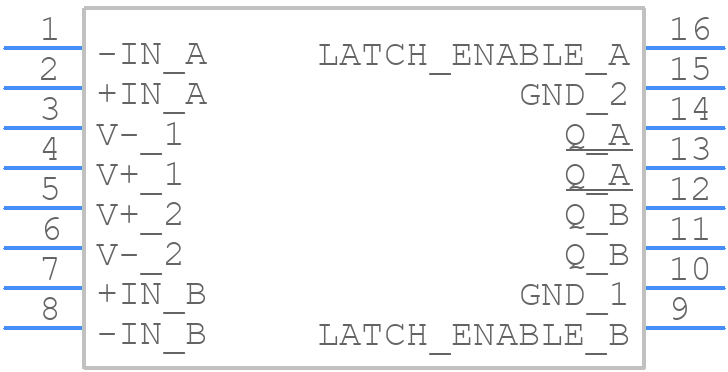

LT1712IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1712IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-LEAD SSOP-GN [N-0.150]
click to zoom
3D Models
LT1712IGN#PBF - Analog Devices - 3D model - Small Outline Packages - 16-LEAD SSOP-GN [N-0.150]
click to zoom

LT1712IGN#PBF Details

  • Manufacturer Part Number:

    LT1712IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    10 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    5.5 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

LT1712IGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1712IGN#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input and output capacitors close to the device.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The maximum input voltage for the LT1712IGN#PBF is 15V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or other protection circuitry to ensure the input voltage remains within the recommended range.
  • The LT1712IGN#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or other thermal management techniques in high-temperature environments.
  • To troubleshoot issues with the LT1712IGN#PBF, start by verifying the input voltage and current, and checking the output voltage and current. Use an oscilloscope to measure the output voltage and current waveforms. Check for noise and oscillations, and ensure that the device is properly decoupled and filtered. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
