LT1713IMS8#TR - Analog Devices

Description: Comparator Single R-R I/O ±6V/12V 8-Pin MSOP T/R

Download LT1713IMS8#TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

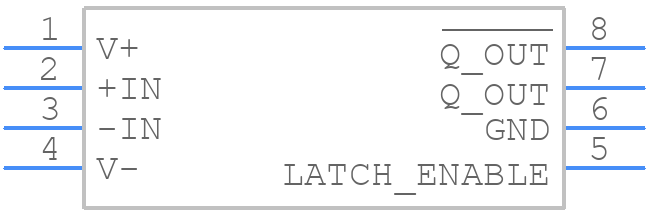

Symbol
LT1713IMS8#TR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1713IMS8#TR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LT1713IMS8#TR - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LT1713IMS8#TR Details

  • Manufacturer Part Number:

    LT1713IMS8#TR

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    5 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    9 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT1713IMS8#TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1713 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 100uF. The capacitor values and types may vary depending on the specific application and operating frequency.
  • The LT1713 has an operating temperature range of -40°C to 125°C, but the device may not meet all specifications across the entire range. It's recommended to check the datasheet for specific temperature-related specifications and to perform thermal analysis for the application.
  • To ensure stability, follow the recommended PCB layout, use the correct input and output capacitors, and avoid long input and output traces. Additionally, the device should be decoupled from the power supply with a 10uF to 100uF capacitor, and the input voltage should be well-regulated.
  • The recommended input voltage range for the LT1713 is 2.7V to 5.5V, but the device can operate from 2.5V to 6V. However, the device's performance and specifications may vary depending on the input voltage.
