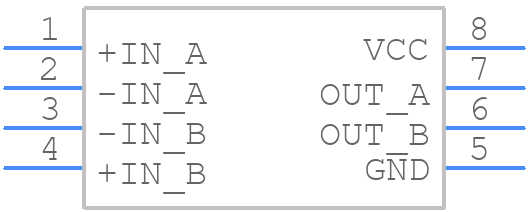

LT1720CS8#PBF - Analog Devices

LT1720CS8#PBF Details

• Manufacturer Part Number:

  LT1720CS8#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  0.150 INCH, PLASTIC, SO-8

• Pin Count:

  8

• Manufacturer Package Code:

  05-08-1610 (S8)

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Amplifier Type:

  COMPARATOR

• Average Bias Current-Max (IIB):

  6 µA

• Input Offset Voltage-Max:

  4500 µV

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Output Type:

  PUSH-PULL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Response Time-Nom:

  7 ns

• Seated Height-Max:

  1.75 mm

• Supply Current-Max:

  14 mA

• Supply Voltage Limit-Max:

  7 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
