LT1720IMS8 - Analog Devices

Description: Comparator Dual R-R O/P 6V 8-Pin MSOP

Download LT1720IMS8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

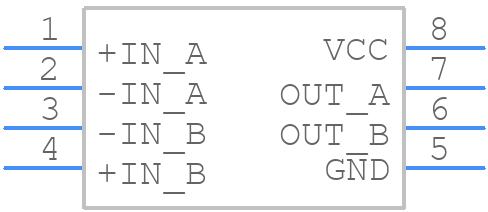

Symbol
LT1720IMS8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1720IMS8 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package
click to zoom
3D Models
LT1720IMS8 - Analog Devices - 3D model - Small Outline Packages - MS8 Package
click to zoom

LT1720IMS8 Details

  • Manufacturer Part Number:

    LT1720IMS8

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    6 µA

  • Input Offset Voltage-Max:

    4500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7 ns

  • Seated Height-Max:

    1.17 mm

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT1720IMS8 Frequently Asked Questions (FAQs)

  • The LT1720IMS8 is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply decoupling capacitors.
  • The output capacitor value for the LT1720IMS8 depends on the specific application and the desired output voltage ripple. A general rule of thumb is to choose a capacitor with a value between 10uF to 100uF, with a voltage rating that is at least 1.5 times the output voltage. It is also important to consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the output capacitor.
  • The LT1720IMS8 has an absolute maximum input voltage rating of 15V. However, the recommended input voltage range is 3.3V to 12V. Exceeding the maximum input voltage can damage the device.
  • The LT1720IMS8 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LT1720IMS8, it is recommended to follow a systematic approach, including checking the input voltage, output voltage, and output current, as well as verifying the device's pin connections and layout. It is also important to consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1720IMS8 Overview

Use the download button to access the LT1720IMS8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT172, or try a keyword search, such as Comparators
