LT1764AEFE-3.3 - Analog Devices

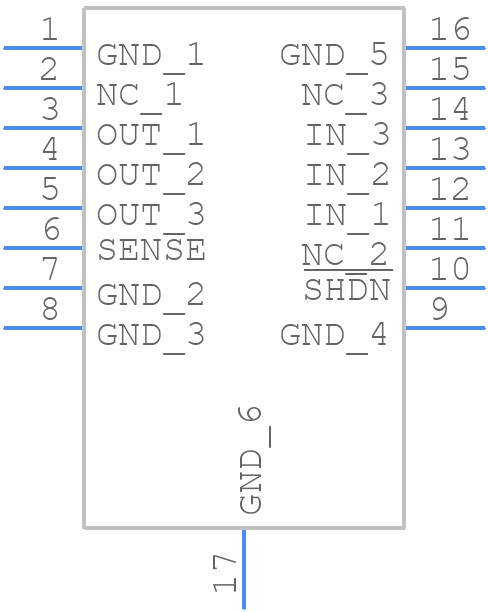

LT1764AEFE-3.3 Details

• Manufacturer Part Number:

  LT1764AEFE-3.3

• Part Life Cycle Code:

  Obsolete

• Package Description:

  TSSOP-16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.66 V

• Dropout Voltage1-Nom:

  0.34 V

• Input Voltage Absolute-Max:

  20 V

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  3.8 V

• JESD-30 Code:

  R-PDSO-G16

• Length:

  5 mm

• Line Regulation-Max:

  0.01%

• Load Regulation-Max:

  0.04%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  16

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  3 A

• Output Voltage1-Max:

  3.4 V

• Output Voltage1-Min:

  3.183 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.1 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Voltage Tolerance-Max:

  3.5%

• Width:

  4.4 mm
