LT1765EFE-2.5#PBF - Analog Devices

Description: Monolithic 3A, 1.25MHz Step-Down Switching Regulator

Download LT1765EFE-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

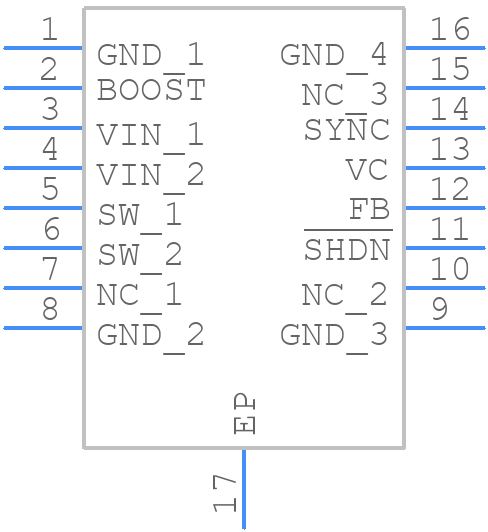

Symbol
LT1765EFE-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1765EFE-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package
click to zoom
3D Models
LT1765EFE-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package
click to zoom

LT1765EFE-2.5#PBF Details

  • Manufacturer Part Number:

    LT1765EFE-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1600 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT1765EFE-2.5#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LT1765EFE-2.5#PBF is -40°C to 125°C.
  • Yes, the LT1765EFE-2.5#PBF is a high-reliability part that meets the requirements of MIL-PRF-38535 and is suitable for use in high-reliability applications.
  • To minimize noise and ensure good performance, it is recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, the datasheet provides specific layout recommendations for the LT1765EFE-2.5#PBF.
  • Yes, the LT1765EFE-2.5#PBF is suitable for use in battery-powered devices due to its low quiescent current and high efficiency. However, it is recommended to follow proper power management techniques to minimize power consumption and extend battery life.
  • The selection of the output capacitor depends on the specific application requirements. The datasheet provides guidelines for selecting the output capacitor, including the recommended capacitance value, ESR, and voltage rating. It is also recommended to consider the capacitor's temperature coefficient, ripple current rating, and physical size when making a selection.
