LT1792CN8#PBF - Analog Devices

Description: OP Amp Single GP ±20V 8-Pin PDIP N

Download LT1792CN8#PBF Model

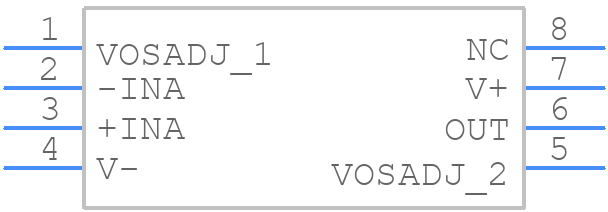

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1792CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 8-Lead PDIP
click to zoom
3D Models
LT1792CN8#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N8 8-Lead PDIP
click to zoom

LT1792CN8#PBF Details

  • Manufacturer Part Number:

    LT1792CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0018 µA

  • Bias Current-Max (IIB) @25C:

    0.008 µA

  • Common-mode Reject Ratio-Min:

    77 dB

  • Common-mode Reject Ratio-Nom:

    99 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2700 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Slew Rate-Min:

    2.1 V/us

  • Slew Rate-Nom:

    3.1 V/us

  • Supply Current-Max:

    5.4 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    80000

  • Wideband:

    NO

  • Width:

    7.62 mm

LT1792CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1792CN8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output current. Additionally, avoid using long output traces and minimize the distance between the output capacitor and the load.
  • The maximum operating temperature range for the LT1792CN8 is -40°C to 125°C. However, the device can be operated at a junction temperature of up to 150°C for short periods of time.
  • Yes, the LT1792CN8 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is available in a variety of grades, including the 'H' grade for high-reliability applications.
  • To troubleshoot issues with the LT1792CN8, start by checking the input voltage and current, output voltage and current, and the device's thermal performance. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB.
