LT1793ACN8#PBF - Analog Devices

Description: Operational Amplifiers - Op Amps L N, pAere Bias C, JFET In Op Amp

Download LT1793ACN8#PBF Model

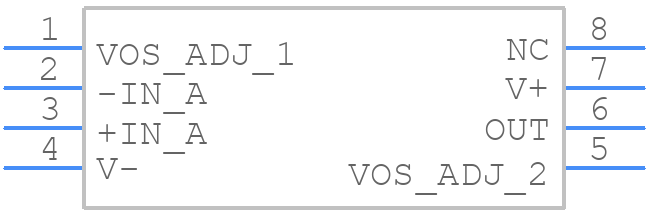

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1793ACN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow 0.300)
click to zoom
3D Models
LT1793ACN8#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow 0.300)
click to zoom

LT1793ACN8#PBF Details

  • Manufacturer Part Number:

    LT1793ACN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Common-mode Reject Ratio-Min:

    79 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.56 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Slew Rate-Min:

    2.2 V/us

  • Slew Rate-Nom:

    3.3 V/us

  • Supply Current-Max:

    5.3 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3300

  • Voltage Gain-Min:

    900000

  • Wideband:

    NO

  • Width:

    7.62 mm

LT1793ACN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1793 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout in the 'Typical Application' section.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the LT1793 has a built-in compensation network, so no external compensation is required. However, if you need to add external compensation, consult the datasheet for guidance.
  • The maximum power dissipation of the LT1793 is dependent on the package type and the ambient temperature. For the N8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the ambient temperature. Consult the datasheet for the power dissipation derating curve.
  • The LT1793 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet for the temperature-related specifications and ensure that your design takes into account the temperature limitations.
  • The LT1793 has built-in overvoltage protection (OVP) and electrostatic discharge (ESD) protection. However, it's still recommended to add external protection devices such as TVS diodes or zener diodes to protect the device from voltage transients and ESD events. Consult the datasheet for guidance on external protection devices.
