LT1801IDD#PBF - Analog Devices

Description: Dual 80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amps , –40°C to 85°C

Download LT1801IDD#PBF Model

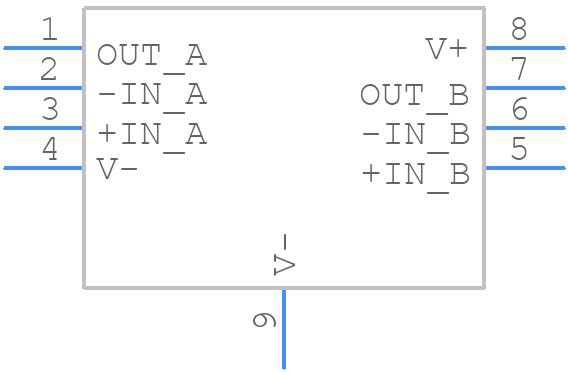

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1801IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)_2026-1.15
click to zoom

LT1801IDD#PBF Details

  • Manufacturer Part Number:

    LT1801IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    2.25 µA

  • Bias Current-Max (IIB) @25C:

    1.5 µA

  • Common-mode Reject Ratio-Min:

    81 dB

  • Common-mode Reject Ratio-Nom:

    104 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    15 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    65000

  • Voltage Gain-Min:

    2500

  • Wideband:

    NO

  • Width:

    3 mm

LT1801IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1801IDD involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and component values, and to ensure that the device is operated within its specified bandwidth. Additionally, using a low-ESR output capacitor and a high-quality input capacitor can help maintain stability.
  • The maximum power dissipation of the LT1801IDD is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout). It's essential to ensure that the device operates within its specified thermal limits to prevent overheating.
  • Yes, the LT1801IDD can be used in a single-supply configuration. To do so, connect the negative input to a reference voltage (e.g., Vcc/2) and use a voltage divider to set the output voltage. Additionally, ensure that the input and output capacitors are properly biased to maintain stability.
  • To protect the LT1801IDD from overvoltage and ESD damage, use voltage clamps or transient voltage suppressors on the input and output pins. Additionally, follow proper ESD handling procedures when handling the device, and ensure that the PCB design includes adequate ESD protection measures.
