LT1801IDD#TRPBF - Analog Devices

Description: Dual 80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amps ,–65°C to 150°C ,12.6V

Download LT1801IDD#TRPBF Model

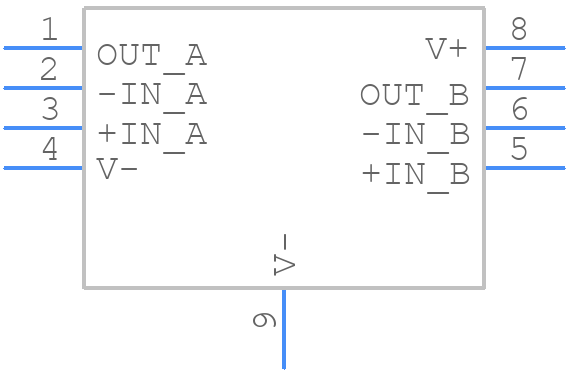

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1801IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1698 Rev C_2026-1.15
click to zoom

LT1801IDD#TRPBF Details

  • Manufacturer Part Number:

    LT1801IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    2.25 µA

  • Bias Current-Max (IIB) @25C:

    1.5 µA

  • Common-mode Reject Ratio-Min:

    81 dB

  • Common-mode Reject Ratio-Nom:

    104 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    15 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    65000

  • Voltage Gain-Min:

    2500

  • Wideband:

    NO

  • Width:

    3 mm

LT1801IDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1801IDD involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 1uF, and keep the input and output impedance low. Also, avoid using long input traces and ensure the device is properly decoupled.
  • The maximum power dissipation of the LT1801IDD is 1.4W. However, this can be limited by the thermal resistance of the package and the PCB. It's essential to ensure good thermal design and heat sinking to prevent overheating.
  • The LT1801IDD is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design and heat sinking to ensure reliable operation in high-temperature environments.
  • To protect the LT1801IDD from overvoltage and overcurrent, use a voltage regulator with overvoltage protection, add a current-limiting resistor in series with the input, and consider using a fuse or a current-sensing resistor to detect overcurrent conditions.
