LT1936EMS8E#PBF - Analog Devices

Description: Linear Technology, LT1936EMS8E#PBF Switching Regulator 1.4A, 8-Pin MSOP

Download LT1936EMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

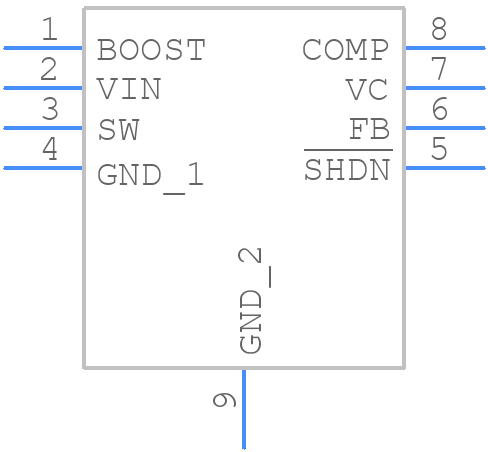

LT1936EMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1936EMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E
click to zoom
3D Models
LT1936EMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E
click to zoom

LT1936EMS8E#PBF Details

  • Manufacturer Part Number:

    LT1936EMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    2.6 A

  • Output Voltage-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT1936EMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1936EMS8E#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended compensation network and component values, and ensure that the output capacitor is properly sized and placed close to the device. Additionally, it's recommended to add a small resistor (e.g. 10Ω) in series with the output capacitor to dampen any oscillations.
  • The maximum input voltage that the LT1936EMS8E#PBF can handle is 36V. Exceeding this voltage may cause damage to the device.
  • The LT1936EMS8E#PBF is rated for operation up to 125°C. However, it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the LT1936EMS8E#PBF, start by checking the input voltage, output voltage, and output current. Verify that the device is properly compensated and that the output capacitor is properly sized and placed. Use an oscilloscope to check for oscillations or ringing on the output. If issues persist, consult the datasheet and application notes for guidance.
