LT1959CR#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1959CR#PBF - DC-DC Switching Buck (Step Down) Regulator, Adjustable, 4V-16Vin, 1.21V-12.9Vout, 4.5Aout, TO-263-7

Download LT1959CR#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

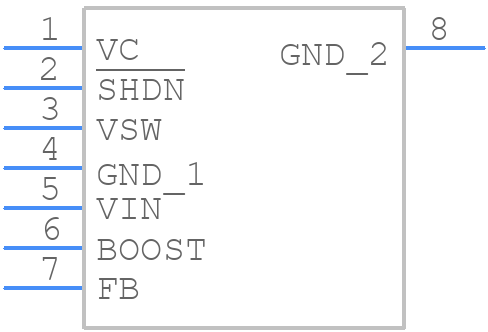

LT1959CR#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

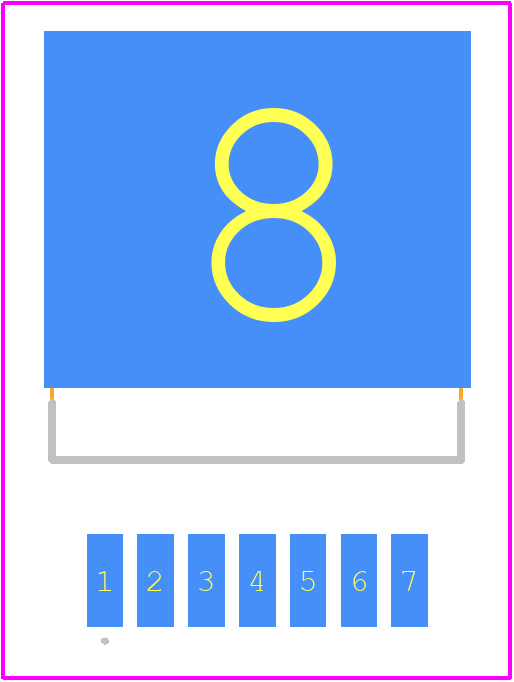

LT1959CR#PBF - Analog Devices PCB footprint - Other - Other - R Package7-Lead Plastic DD Pak
click to zoom

LT1959CR#PBF Details

  • Manufacturer Part Number:

    LT1959CR#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, D2PAK-7

  • Pin Count:

    7

  • Manufacturer Package Code:

    05-08-1462

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4.3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10.2235 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    8.5 A

  • Output Voltage-Min:

    1.21 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP7H,.55,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    5.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    560 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8.89 mm

LT1959CR#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1959CR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is of high quality and has a low equivalent series resistance (ESR). Additionally, add a small capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
  • The maximum ambient temperature range for the LT1959CR is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper thermal management in your design.
  • Yes, the LT1959CR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is also suitable for industrial and medical applications that require high reliability.
  • To calculate the power dissipation of the LT1959CR, use the following formula: Pd = (VIN x IIN) + (VOUT x IOUT). Make sure to consider the device's efficiency, input voltage, output voltage, and output current when calculating the power dissipation.
