LT1962EMS8-1.5 - Analog Devices

Description: LDO Regulator Pos 1.5V 0.3A Automotive 8-Pin MSOP

Download LT1962EMS8-1.5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

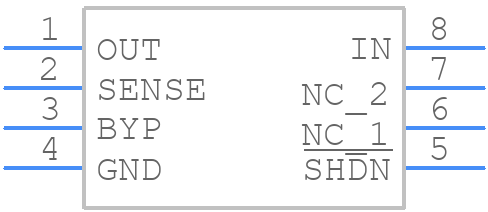

Symbol
LT1962EMS8-1.5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1962EMS8-1.5 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP8
click to zoom
3D Models
LT1962EMS8-1.5 - Analog Devices - 3D model - Small Outline Packages - MSOP8
click to zoom

LT1962EMS8-1.5 Details

  • Manufacturer Part Number:

    LT1962EMS8-1.5

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.43 V

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage Absolute-Max:

    20 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    2 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Line Regulation-Max:

    0.005%

  • Load Regulation-Max(%):

    0.015%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.538 V

  • Output Voltage1-Min:

    1.462 V

  • Output Voltage1-Nom:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Voltage Tolerance-Max:

    2.5%

  • Width:

    3 mm

LT1962EMS8-1.5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1962EMS8-1.5 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and output capacitor values. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum output capacitor value of 10uF is recommended, and the device should be operated within its specified output current range.
  • The LT1962EMS8-1.5 has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the LT1962EMS8-1.5 is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and Analog Devices provides a range of documentation and support for these applications, including AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation.
  • To troubleshoot issues with the LT1962EMS8-1.5, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure that it meets the recommended layout guidelines. Use an oscilloscope to measure the output voltage ripple and noise, and verify that the device is operating within its specified temperature range. Consult the datasheet and application notes for troubleshooting guides and FAQs.
