LT1963AET#06PBF - Analog Devices

Description: LDO Voltage Regulators Fast Transient 1.5A LDO

Download LT1963AET#06PBF Model

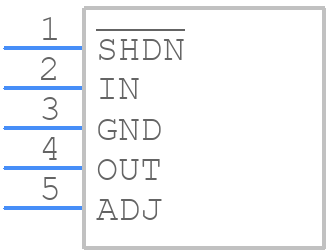

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

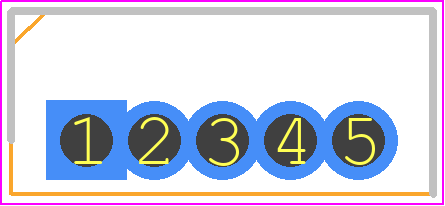

PCB Footprints
LT1963AET#06PBF - Analog Devices PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - T Package 5-Lead Plastic TO-220 (Straight Lead) (Nonstandard Flow 06) (Reference LTC DWG # 05-08-1421
click to zoom
3D Models
LT1963AET#06PBF - Analog Devices  - 3D model - Transistor Outline, Vertical - T Package 5-Lead Plastic TO-220 (Straight Lead) (Nonstandard Flow 06) (Reference LTC DWG # 05-08-1421
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for LT1963AET#06PBF
  • Part Number LT1963AET#06PBF
  • Manufacturer Analog Devices
  • Pin Count 5
  • Part Category Integrated Circuit
  • Package Category Transistor Outline, Vertical
  • Footprint Name Transistor Outline, Vertical - T Package 5-Lead Plastic TO-220 (Straight Lead) (Nonstandard Flow 06) (Reference LTC DWG # 05-08-1421
  • Released Date Jan 23, 2021
  • Last Modified Date Aug 4, 2026 9:16 AM UTC
  • Pinout / Pin List Click Here (Member Only)

LT1963AET#06PBF Details

  • Manufacturer Part Number:

    LT1963AET#06PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-220, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    05-08-1421 (FLOW 06)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.34 V

  • Input-Output Voltage Differential-Max:

    18.79 V

  • Input-Output Voltage Differential-Min:

    1 V

  • JESD-30 Code:

    R-PZFM-T5

  • JESD-609 Code:

    e3

  • Length:

    10.22 mm

  • Line Regulation-Max (%/V):

    0.023

  • Load Regulation-Max(%):

    0.413%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    1.21 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-220

  • Package Equivalence Code:

    ZIP5,.15,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    21.539 mm

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.38 mm

LT1963AET#06PBF Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to use a 4-layer PCB with a solid ground plane on the bottom layer, and to place a thermal relief pattern around the device's thermal pad. Additionally, keeping the thermal pad connected to the ground plane can help to reduce thermal resistance.
  • To ensure stability, it is recommended to follow the guidelines in the datasheet for output capacitor selection, and to use a capacitor with a low equivalent series resistance (ESR). Additionally, the input capacitor should be placed close to the device's input pins, and the output capacitor should be placed close to the output pins.
  • The maximum ambient temperature that the LT1963AET#06PBF can operate in is 125°C. However, the device's junction temperature should not exceed 150°C to ensure reliable operation.
  • Yes, the LT1963AET#06PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its reliability and performance.
  • The power dissipation of the LT1963AET#06PBF can be calculated using the following formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
