LT1963EFE#PBF - Analog Devices

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A 16-TSSOP-EP

Download LT1963EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

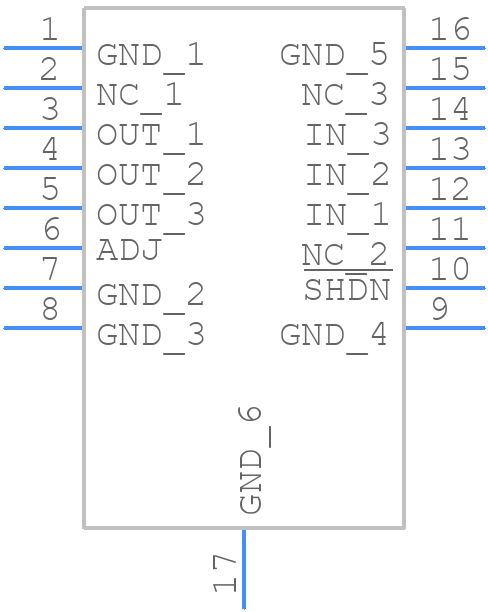

LT1963EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1963EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package
click to zoom
3D Models
LT1963EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package
click to zoom

LT1963EFE#PBF Details

  • Manufacturer Part Number:

    LT1963EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Dropout Voltage1-Max:

    0.55 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    1.21 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT1963EFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT1963EFE is 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a minimum 10uF output capacitor and a 1uF input capacitor, and to avoid exceeding the maximum output current rating.
  • The typical dropout voltage of the LT1963EFE is around 300mV at an output current of 1A, but this can vary depending on the input voltage, output current, and temperature.
  • The LT1963EFE is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
  • The power dissipation of the LT1963EFE can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
