LT1965IMS8E#PBF - Analog Devices

Description: Analog Devices LT1965IMS8E#PBF, LDO Regulator, 1.1A Adjustable, 1.2 → 19.5 V 8-Pin, MSOP

Download LT1965IMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

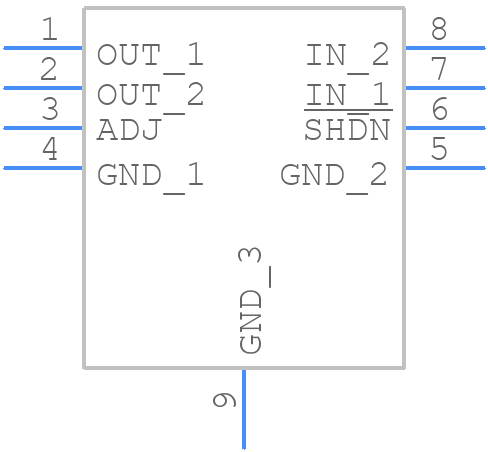

Symbol
LT1965IMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1965IMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1662)_1
click to zoom
3D Models
LT1965IMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1662)_1
click to zoom

LT1965IMS8E#PBF Details

  • Manufacturer Part Number:

    LT1965IMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.49 V

  • Dropout Voltage1-Nom:

    0.31 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.0372

  • Load Regulation-Max(%):

    1.3333%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.1 A

  • Output Voltage1-Max:

    19.5 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT1965IMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1965IMS8E#PBF should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the exposed pad of the package. The layout should also minimize thermal resistance and ensure good airflow around the device.
  • To ensure stability in the output voltage, it's essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, the output capacitor should be placed close to the output pin, and the input capacitor should be placed close to the input pin.
  • The maximum ambient temperature for reliable operation of the LT1965IMS8E#PBF is 85°C. However, the device can operate up to 125°C with derating. It's essential to ensure proper heat sinking and airflow to maintain a safe operating temperature.
  • Yes, the LT1965IMS8E#PBF is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process, and Analog Devices Inc provides a radiation-hardened version of the device for space applications.
  • To troubleshoot issues with the LT1965IMS8E#PBF, start by verifying the input voltage, output voltage, and current draw. Check the PCB layout for thermal issues, and ensure that the device is properly heat-sunk. Use an oscilloscope to check for oscillations or noise on the output voltage. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
