LT1977EFE#PBF - Analog Devices

Description: LT1977EFE#PBF, Switching Regulator, Buck Controller, 3.5A, Adjustable, 575 kHz, 16-Pin TSSOP EP

Download LT1977EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

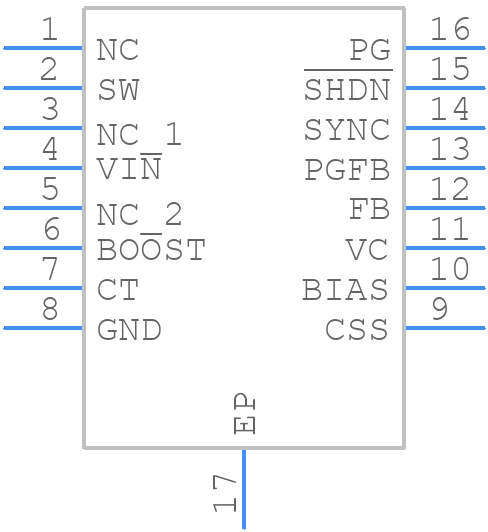

LT1977EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1977EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE(TSSOP)
click to zoom
3D Models
LT1977EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE(TSSOP)
click to zoom

LT1977EFE#PBF Details

  • Manufacturer Part Number:

    LT1977EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.4 MM, LEAD FREE, PLASTIC, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BC)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    3.3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    3.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    575 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT1977EFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1977EFE involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR output capacitor, and add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins. Additionally, ensure that the input and output voltage rails are well-bypassed and decoupled.
  • The LT1977EFE is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature (TJ) does not exceed 150°C.
  • Yes, the LT1977EFE is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to the AEC-Q100 standard for automotive applications. However, it's essential to follow the recommended PCB layout, thermal management, and component selection guidelines to ensure reliable operation.
  • To calculate the power dissipation, use the formula: Pd = (VIN - VOUT) x IOUT. To estimate the junction temperature, use the formula: TJ = TA + (Pd x θJA), where TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance (45°C/W for the LT1977EFE).
