LT1991ACMSPBF - Analog Devices

Description: n Pin Configurable as a Difference Amplifier, Inverting and Noninverting Amplifier n Difference Amplifier Gain Range 1 to 13 CMRR >75dB n Noninverting Amplifier Gain Range 0.07 to 14 n Inverting Amplifier Gain Range –0.08 to –13 n Gain Error <0.04% n Gain Drift < 3ppm/°C n Wide Supply Range: Single 2.7V to Split ±18V n Micropower: 100µA Supply Current n Precision: 50µV Maximum Input Offset Voltage n 560kHz Gain Bandwidth Product n Rail-to-Rail Output n Space Saving 10-Lead MSOP and DFN P

Download LT1991ACMSPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

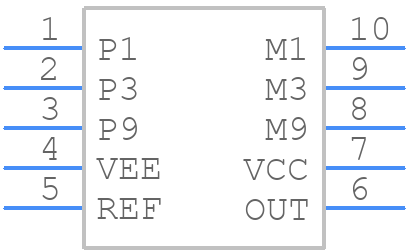

LT1991ACMSPBF - Analog Devices - PCB symbol
