LT1991AIMS#PBF - Analog Devices

Description: Precision Amplifiers Prec, 100 A Gain Sel Amp

Download LT1991AIMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

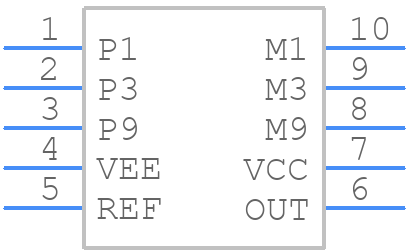

Symbol
LT1991AIMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1991AIMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - msop
click to zoom
3D Models
LT1991AIMS#PBF - Analog Devices - 3D model - Small Outline Packages - msop
click to zoom

LT1991AIMS#PBF Details

  • Manufacturer Part Number:

    LT1991AIMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0075 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    160 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.08 V/us

  • Slew Rate-Nom:

    0.12 V/us

  • Supply Current-Max:

    0.021 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    560

  • Wideband:

    YES

  • Width:

    3 mm

LT1991AIMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1991 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and component values, and to minimize parasitic capacitance and inductance in the input and feedback paths. Additionally, using a low-ESR output capacitor and a high-quality input capacitor can help improve stability.
  • The maximum power dissipation of the LT1991 is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. It's essential to ensure that the device does not exceed the maximum power dissipation to prevent overheating and damage.
  • Yes, the LT1991 can be used as a voltage regulator, but it's essential to ensure that the output voltage is within the recommended range (1.2V to 12V) and that the output current does not exceed the maximum rating (1A). Additionally, the device may require external components to ensure stability and regulation.
  • To protect the LT1991 from overvoltage and overcurrent conditions, it's recommended to use external protection components such as TVS diodes, zener diodes, or fuses. Additionally, ensuring that the input voltage is within the recommended range and using a current-limiting resistor can help prevent damage to the device.
