LT1997HMS-2#PBF - Analog Devices

Description: Precision Amplifiers Precision, Wide Volt Range,Difference Amp

Download LT1997HMS-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

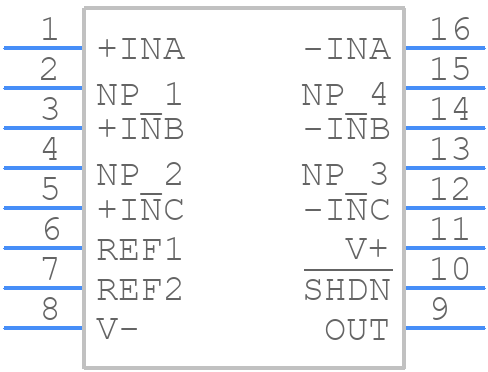

Symbol
LT1997HMS-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1997HMS-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-MSOP
click to zoom
3D Models
LT1997HMS-2#PBF - Analog Devices - 3D model - Small Outline Packages - 16-MSOP
click to zoom

LT1997HMS-2#PBF Details

  • Manufacturer Part Number:

    LT1997HMS-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16/14

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1847

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-06-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.015 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Common-mode Reject Ratio-Min:

    101 dB

  • Common-mode Reject Ratio-Nom:

    118 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    4.309 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -30 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.45 V/us

  • Slew Rate-Nom:

    0.75 V/us

  • Supply Current-Max:

    0.004 mA

  • Supply Voltage Limit-Max:

    30 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3 mm

LT1997HMS-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1997HMS-2#PBF involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use the correct output capacitor value, and ensure that the input and output impedance are matched. Additionally, adding a small capacitor (e.g., 10nF) between the output and ground can help prevent oscillations.
  • The maximum power dissipation of the LT1997HMS-2#PBF is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
  • The LT1997HMS-2#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure that the device is properly cooled to maintain its performance and reliability.
  • To protect the LT1997HMS-2#PBF from ESD, it's essential to handle the device with anti-static wrist straps, mats, or bags. Additionally, the device should be stored in anti-static packaging, and the PCB should be designed with ESD protection in mind, such as using ESD protection diodes or resistors.
