LT1997IDF-1#PBF - Analog Devices

Description: SP Amp Difference Amplifier Single R-R O/P ±25V/50V Automotive 12-Pin DFN EP Tube

Download LT1997IDF-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

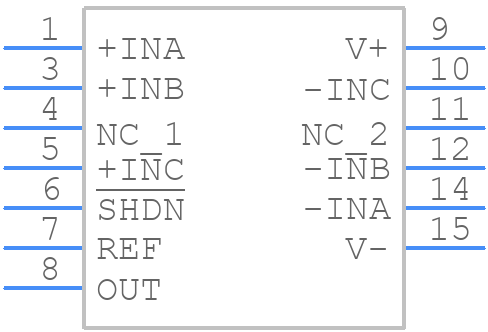

Symbol
