LT1997IMS-3#PBF - Analog Devices

Description: Precision Amplifiers Precision, Wide Voltage Range, Difference Amplifier

Download LT1997IMS-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

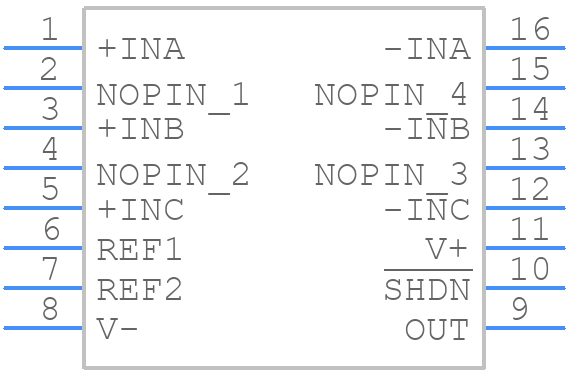

LT1997IMS-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1997IMS-3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 (12)-Lead Plastic MSOP with 4 Pins Removed
click to zoom
3D Models
LT1997IMS-3#PBF - Analog Devices - 3D model - Small Outline Packages - 16 (12)-Lead Plastic MSOP with 4 Pins Removed
click to zoom

LT1997IMS-3#PBF Details

  • Manufacturer Part Number:

    LT1997IMS-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16/12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1847

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.015 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12/16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    YES

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.45 V/us

  • Slew Rate-Nom:

    0.75 V/us

  • Supply Voltage Limit-Max:

    60 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3 mm
