LT1999HMS8-10F#WPBF - Analog Devices

Description: Current Sense Amplifiers Hi V, Bi-dir C Sense Amp

Download LT1999HMS8-10F#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

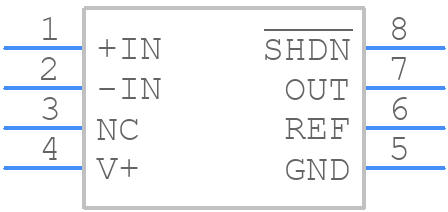

Symbol
LT1999HMS8-10F#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1999HMS8-10F#WPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP_2021
click to zoom
3D Models
LT1999HMS8-10F#WPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP_2021
click to zoom

LT1999HMS8-10F#WPBF Details

  • Manufacturer Part Number:

    LT1999HMS8-10F#WPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    CURRENT-SHUNT

  • Bandwidth (3dB)-Nom:

    2 MHz

  • Common Mode Voltage-Max:

    80 V

  • Common-mode Reject Ratio-Min:

    96 dB

  • Common-mode Reject Ratio-Nom:

    105 dB

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    3 V/us

  • Supply Current-Max:

    7.1 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Nom:

    10

  • Width:

    3 mm

LT1999HMS8-10F#WPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1999HMS8-10F#WPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, choose the correct gain resistors, and ensure that the output is properly terminated. Also, avoid capacitive loading on the output and keep the input impedance high.
  • The maximum power dissipation for the LT1999HMS8-10F#WPBF is 1.4W. However, this can be limited by the thermal resistance of the package and the PCB. Make sure to follow the recommended thermal management guidelines to avoid overheating.
  • The LT1999HMS8-10F#WPBF is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C. Make sure to follow the recommended thermal management guidelines and derate the device's performance accordingly.
  • Common issues with the LT1999HMS8-10F#WPBF include oscillation, instability, and incorrect output voltage. To troubleshoot, check the PCB layout, ensure proper termination, and verify the compensation network. Also, check for any signs of overheating or electrical overstress.
