LT3001ES5#TRPBF - Analog Devices

Description: Switching Voltage Regulators 36VIN 4W No-Opto Iso Flyback Converter

Download LT3001ES5#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

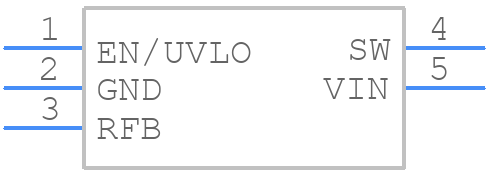

LT3001ES5#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3001ES5#TRPBF - Analog Devices PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - 5 Lead Plastic TSOT-23
click to zoom
3D Models
LT3001ES5#TRPBF - Analog Devices - 3D model - SOT23 (5-Pin) - 5 Lead Plastic TSOT-23
click to zoom

LT3001ES5#TRPBF Details

  • Manufacturer Part Number:

    LT3001ES5#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    05-08-1635

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-08-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    1.55 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    10.6 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LT3001ES5#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3001ES5 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within its recommended operating frequency range. Additionally, adding a small capacitor (e.g., 10nF) between the VOUT and GND pins can help prevent oscillations.
  • The maximum ambient temperature range for the LT3001ES5 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation.
  • While the LT3001ES5 is a high-reliability device, it's essential to consult with Analog Devices' sales team or a qualified representative to determine its suitability for high-reliability or aerospace applications, as additional testing and certification may be required.
  • To troubleshoot issues with the LT3001ES5, start by verifying the input voltage, output voltage, and output current. Check the PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3001ES5#TRPBF Overview

Use the download button to access the LT3001ES5#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT300, or try a keyword search, such as Switching Regulator or Controllers
