LT3009EDC#TRMPBF - Analog Devices

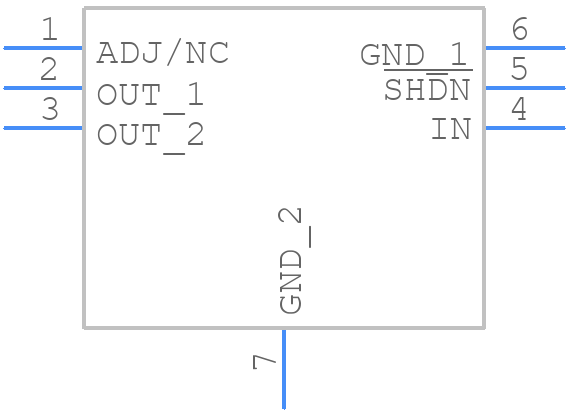

LT3009EDC#TRMPBF Details

• Manufacturer Part Number:

  LT3009EDC#TRMPBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  2 X 2 MM, PLASTIC, MO-229WCCD-2, DFN-6

• Pin Count:

  6

• Manufacturer Package Code:

  05-08-1703

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.45 V

• Dropout Voltage1-Nom:

  0.28 V

• JESD-30 Code:

  S-PDSO-N6

• JESD-609 Code:

  e3

• Length:

  2 mm

• Line Regulation-Max (%/V):

  0.004

• Load Regulation-Max(%):

  0.5%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.02 A

• Output Voltage1-Max:

  19.5 V

• Output Voltage1-Min:

  0.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2 mm
