LT3010HMS8E-5 - Analog Devices

Description: LDO Regulator Pos 5V 0.05A Automotive 8-Pin MSOP EP

Download LT3010HMS8E-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

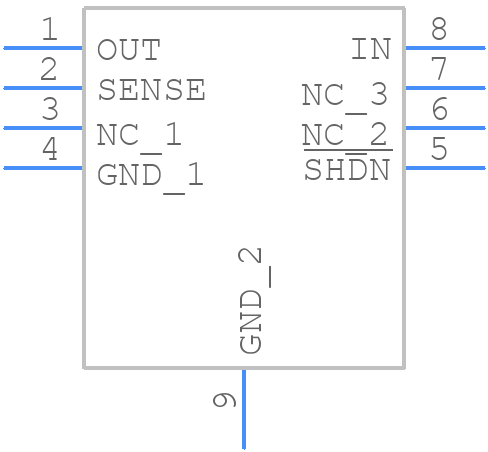

Symbol
LT3010HMS8E-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3010HMS8E-5 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom
3D Models
LT3010HMS8E-5 - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom

LT3010HMS8E-5 Details

  • Manufacturer Part Number:

    LT3010HMS8E-5

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.6 V

  • Input Voltage Absolute-Max:

    80 V

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max:

    0.09%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    140 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5.15 V

  • Output Voltage1-Min:

    4.85 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    3%

  • Width:

    3 mm

LT3010HMS8E-5 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a solid copper plane, using thermal vias to connect the plane to the device's thermal pad, and keeping the plane as close to the device as possible. Additionally, using a 4-layer board with a dedicated thermal layer can help to dissipate heat more efficiently.
  • To ensure reliable start-up and operation with a high-impedance input source, it is recommended to add a capacitor (typically 1-10uF) between the input pin and ground to filter out noise and reduce the impedance. Additionally, a soft-start circuit can be implemented to limit the inrush current and prevent voltage drops during start-up.
  • The maximum output current that can be safely drawn from the LT3010HMS8E-5 is dependent on the ambient temperature and the thermal design of the PCB. However, as a general guideline, the device can deliver up to 1.5A of output current without exceeding the maximum junction temperature. It is recommended to consult the thermal derating curves in the datasheet to determine the maximum safe output current for a specific application.
  • To troubleshoot oscillations or instability in the output voltage, check the PCB layout for any signs of noise coupling or resonance. Ensure that the input and output capacitors are properly sized and placed, and that the feedback loop is properly compensated. Additionally, check the output voltage ripple and noise using an oscilloscope to identify any signs of instability. If the issue persists, consider adding a small capacitor (typically 10-100nF) between the output pin and ground to filter out high-frequency noise.
  • The recommended input voltage range for optimal performance of the LT3010HMS8E-5 is between 2.9V and 5.5V. Operating the device outside of this range may affect its performance, efficiency, and reliability. It is recommended to consult the datasheet for specific guidelines on input voltage range and tolerance.
