LT3010MPMS8E - Analog Devices

Description: LDO Regulator Pos 1.275V to 60V 0.05A Automotive 8-Pin MSOP EP Tube

Download LT3010MPMS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

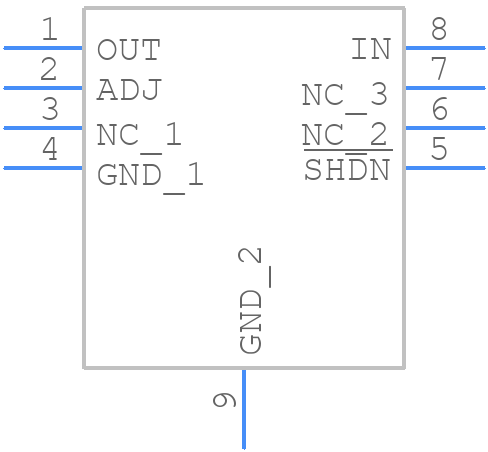

LT3010MPMS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3010MPMS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP6
click to zoom
3D Models
LT3010MPMS8E - Analog Devices - 3D model - Small Outline Packages - MSOP6
click to zoom

LT3010MPMS8E Details

  • Manufacturer Part Number:

    LT3010MPMS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.013

  • Load Regulation-Max(%):

    2.51%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.275 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3010MPMS8E Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3010MPMS8E involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the input and output voltage rails within the specified range. Additionally, avoid using long input traces and minimize the distance between the input capacitors and the device.
  • The LT3010MPMS8E can handle input voltages up to 36V, but it's recommended to operate within the specified input voltage range of 3.5V to 30V for optimal performance and reliability.
  • The LT3010MPMS8E is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown.
  • The output voltage of the LT3010MPMS8E can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.2V), R1 is the feedback resistor, and R2 is the divider resistor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3010MPMS8E Overview

Use the download button to access the LT3010MPMS8E schematic symbol, PCB footprint, and 3D model.
