LT3013BEFE#TRPBF - Analog Devices

Description: 250mA, 4V to 80V Low Dropout Micropower Linear Regulator with PWRGD

Download LT3013BEFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

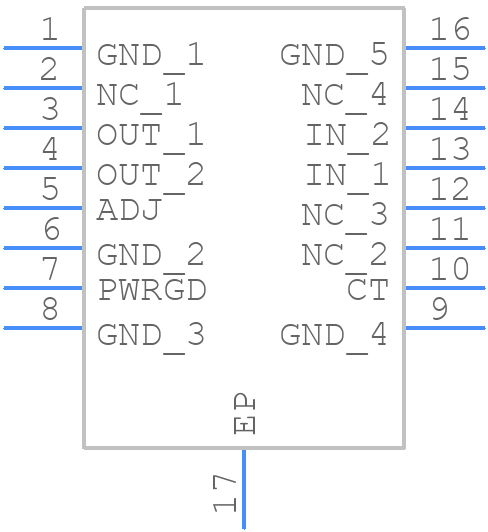

Symbol
LT3013BEFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3013BEFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm
click to zoom
3D Models
LT3013BEFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm
click to zoom

LT3013BEFE#TRPBF Details

  • Manufacturer Part Number:

    LT3013BEFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.4 MM, LEAD FREE, PLASTIC, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.62 V

  • Dropout Voltage1-Nom:

    0.4 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.005

  • Load Regulation-Max(%):

    2%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.25 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3013BEFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3013BEFE#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network and component values, and ensure that the output capacitor is properly sized and placed. Also, avoid using long feedback traces and keep the feedback network as simple as possible. If oscillations occur, try adding a small capacitor (e.g. 10pF) between the output and the feedback pin.
  • The maximum input voltage that can be applied to the LT3013BEFE#TRPBF is 36V, but it's recommended to keep the input voltage below 30V to ensure reliable operation and prevent damage to the device.
  • While it's possible to use a different output capacitor value or type, it's not recommended as it may affect the stability and performance of the device. The recommended output capacitor value and type are specified in the datasheet to ensure optimal performance and stability.
  • To handle thermal considerations, ensure good airflow around the device, and use a heat sink or thermal pad if necessary. The device's thermal pad should be connected to a solid ground plane to help dissipate heat. Also, avoid using a PCB with a high thermal resistance and ensure that the device is not operated at maximum power for extended periods.
