LT3015EQ-12#PBF footprint, schematic symbol and 3D model by Analog Devices

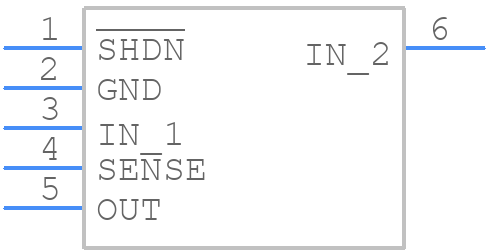

Symbol

click to zoom

PCB Footprints

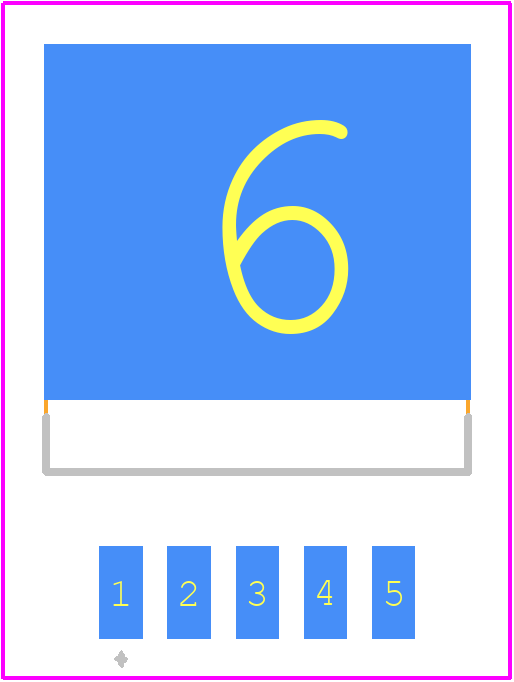

LT3015EQ-12#PBF - Analog Devices PCB footprint - Other - Other - 5-LEADPLASTIC DD-PAK

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT3015EQ-12#PBF
Part Number LT3015EQ-12#PBF
Manufacturer Analog Devices
Pin Count 6
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 5-LEADPLASTIC DD-PAK
Released Date Aug 16, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LT3015EQ-12#PBF Details

Manufacturer Part Number:
LT3015EQ-12#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
D2PAK-5
Pin Count:
5
Manufacturer Package Code:
05-08-1461
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Adjustability:
FIXED
Dropout Voltage1-Max:
0.68 V
Dropout Voltage1-Nom:
0.41 V
Input Voltage Absolute-Max:
33 V
Input Voltage-Max:
30 V
Input Voltage-Min:
12.5 V
JESD-30 Code:
R-PSSO-G5
JESD-609 Code:
e3
Length:
10.2235 mm
Line Regulation-Max:
0.027%
Load Regulation-Max:
0.062%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
5
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
1.5 A
Output Voltage1-Max:
12.24 V
Output Voltage1-Min:
11.76 V
Output Voltage1-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
SMSIP5H,.54,67TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Regulator Type:
FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
4.877 mm
Surface Mount:
YES
Technology:
BIPOLAR
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.702 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
8.89 mm

LT3015EQ-12#PBF Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure stability and prevent oscillations in the output voltage, it's essential to follow the recommended compensation network and output capacitor selection guidelines provided in the datasheet. Additionally, the input and output capacitors should be placed close to the device, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
The maximum input voltage that can be applied to the LT3015EQ-12#PBF without damaging it is 18V. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the input voltage is within the recommended operating range to maintain device reliability and performance.
The LT3015EQ-12#PBF is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended thermal derating guidelines and ensure that the device is properly heatsinked to maintain its performance and reliability in high-temperature environments.
To troubleshoot issues with the output voltage regulation, start by verifying that the input voltage is within the recommended operating range and that the output capacitor is properly selected and placed. Check the output voltage ripple and noise using an oscilloscope, and ensure that the compensation network is properly configured. If the issue persists, consult the datasheet and application notes for further guidance.
