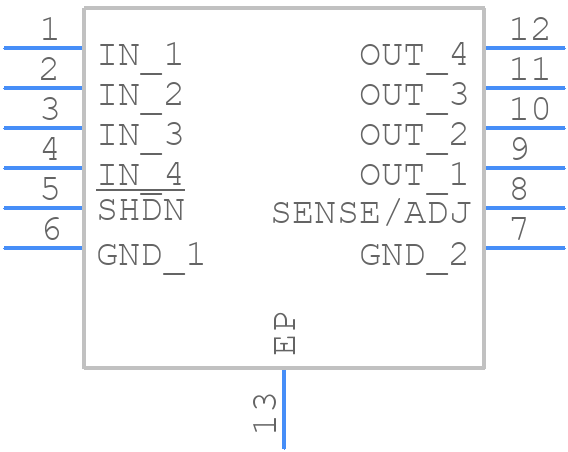

LT3015IMSE-3.3#PBF - Analog Devices

LT3015IMSE-3.3#PBF Details

• Manufacturer Part Number:

  LT3015IMSE-3.3#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LEAD FREE, PLASTIC, MSOP-12

• Pin Count:

  12

• Manufacturer Package Code:

  05-08-1666

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.5 V

• Dropout Voltage1-Nom:

  0.31 V

• Input Voltage-Max:

  30 V

• Input Voltage-Min:

  3.8 V

• JESD-30 Code:

  R-PDSO-G12

• JESD-609 Code:

  e3

• Length:

  4.039 mm

• Load Regulation-Max:

  0.025%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  12

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1.5 A

• Output Voltage1-Max:

  3.366 V

• Output Voltage1-Min:

  3.234 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.1 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  2%

• Width:

  3 mm
